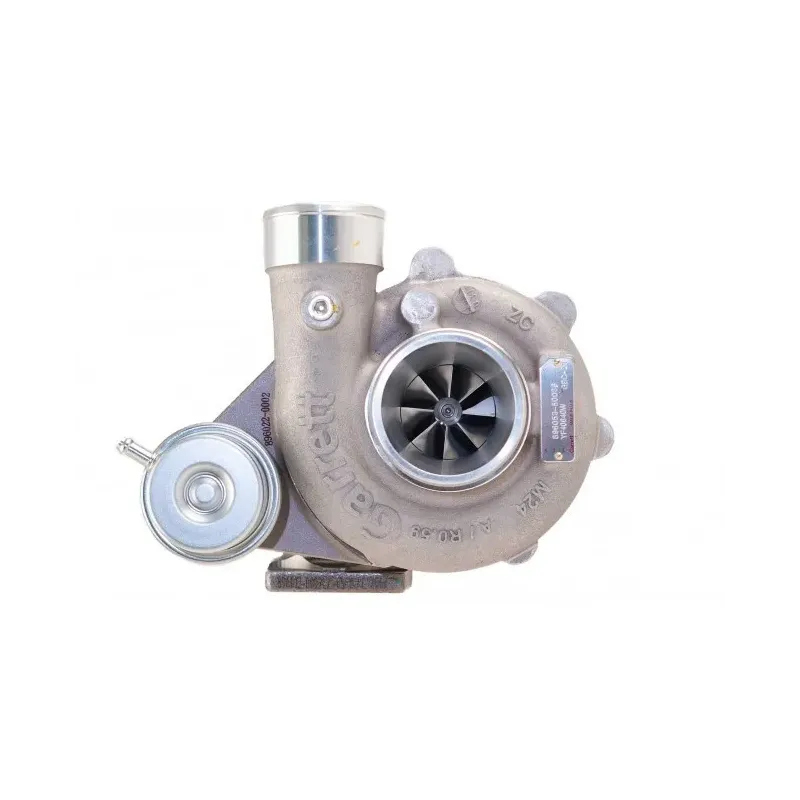

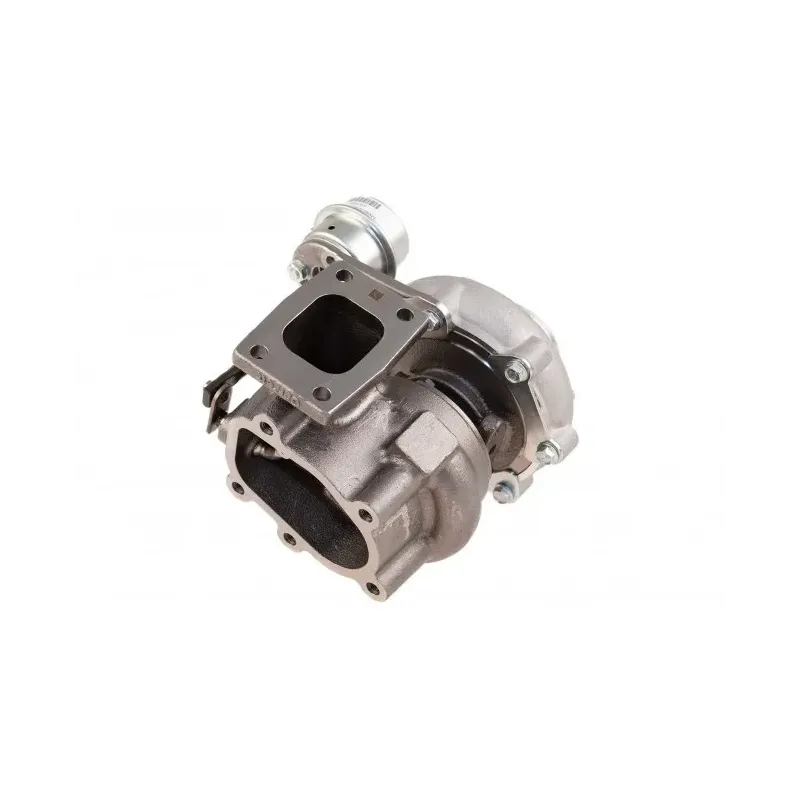

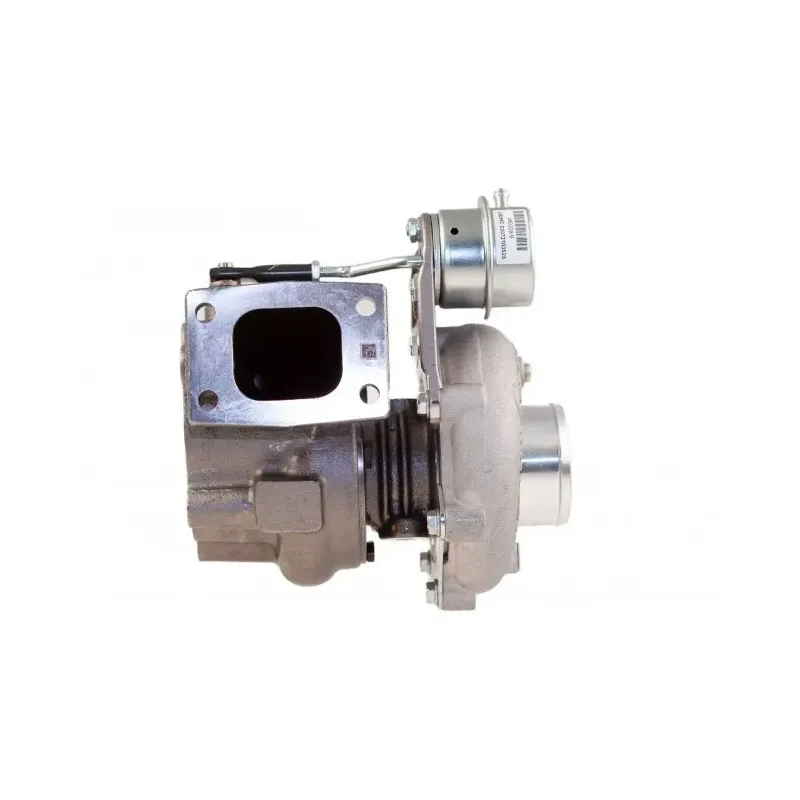

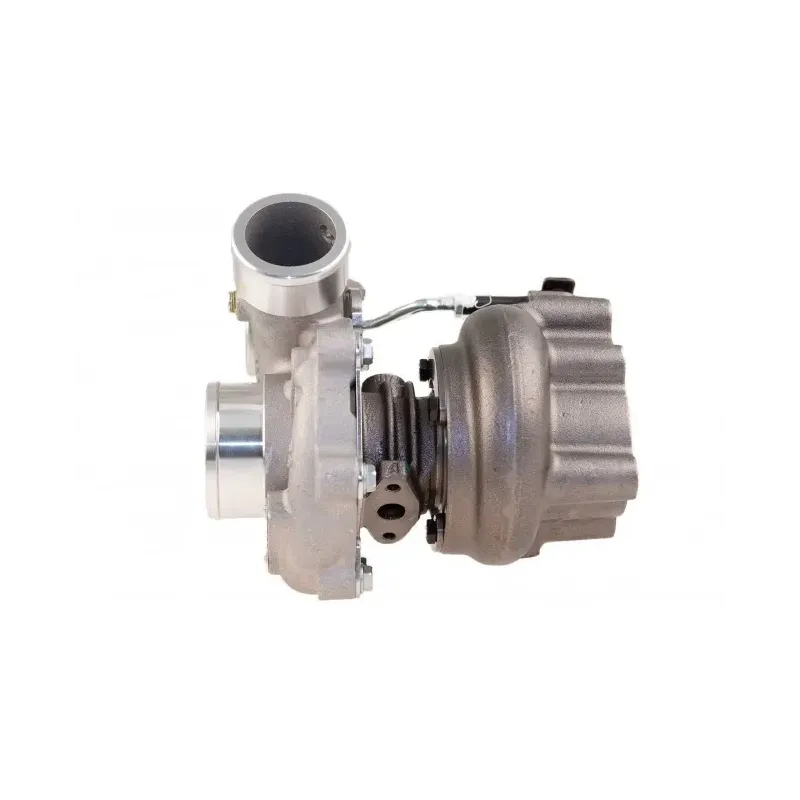

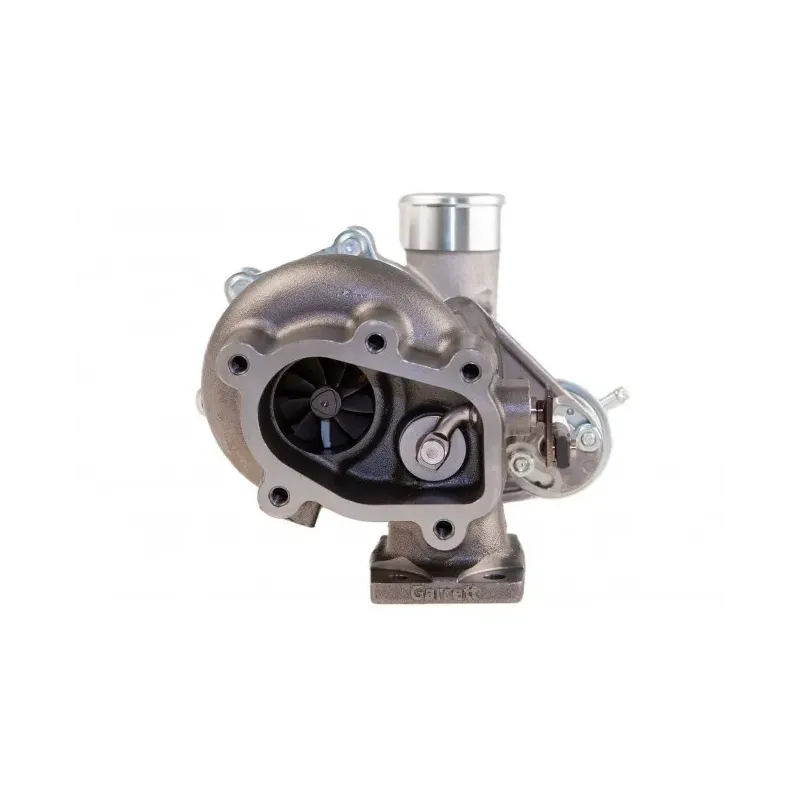

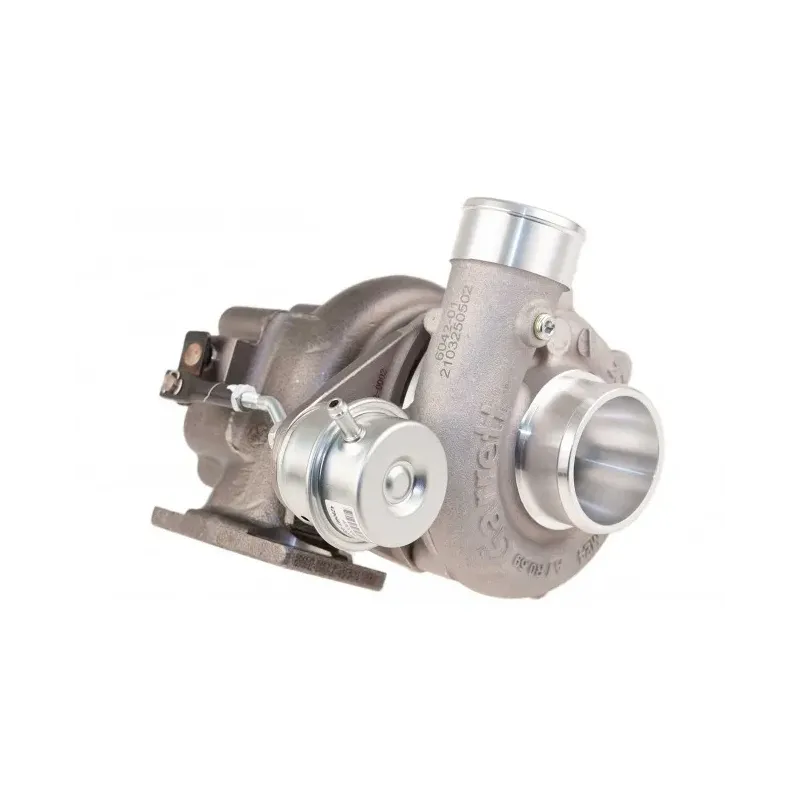

Garrett GBC20-300 Turbocharger 0.55 A/R WG 896053-5003S

PRODUCT INFORMATION:

• Horsepower: 170 - 300 HP

• Displacement: 0.8 - 2.0 L

• T-25 Inlet - 5-Bolt Outlet - Single Scroll - Internal Wastegate - A/R 0.55

These very small turbocharger achieve extremely high performance with minimum space requirements.

• Latest CFD-optimized, forged milled compressor wheel

• Rotation: Standard (Clockwise)

• Latest generation of journal bearing rotor group

• 360-degree thrust bearing

• Ductile iron (SiMo+) turbine housing material

• Inconel turbine wheel material

• Oil cooled center housing

• Internal Wastegate incl. 0.5 bar Actuator

• Delivery: Turbocharger

Compressor side:

It uses the latest generation of CFD-designed compressor wheels.

Center Housing:

The center section is attached to the exhaust housing over an V-band and can thus easily rotate 360° into any position.

Turbine side:

The completely redesigned turbine wheel, made of the high-performance material Inconel, enables exhaust gas temperatures up to 980° C.
