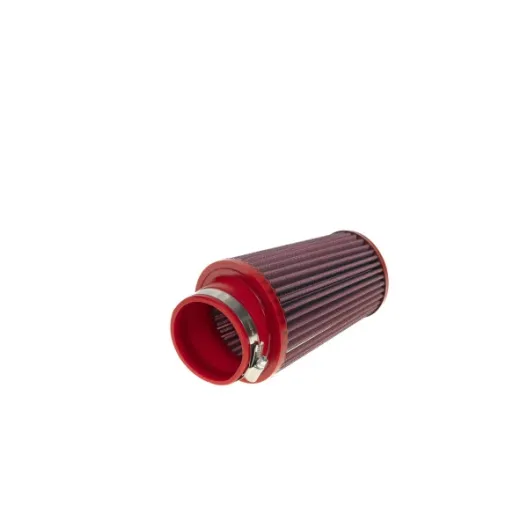

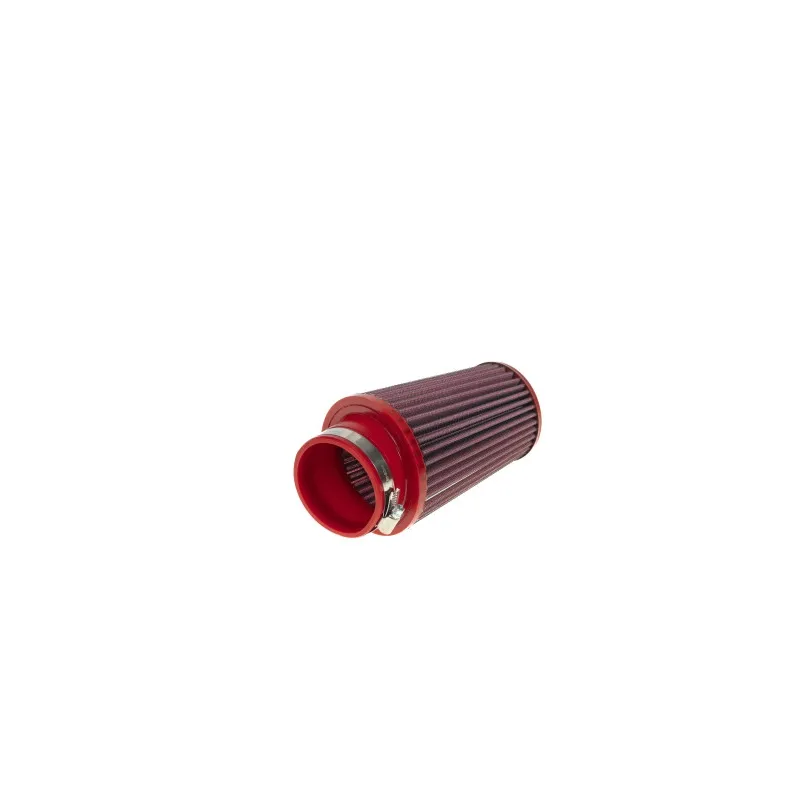

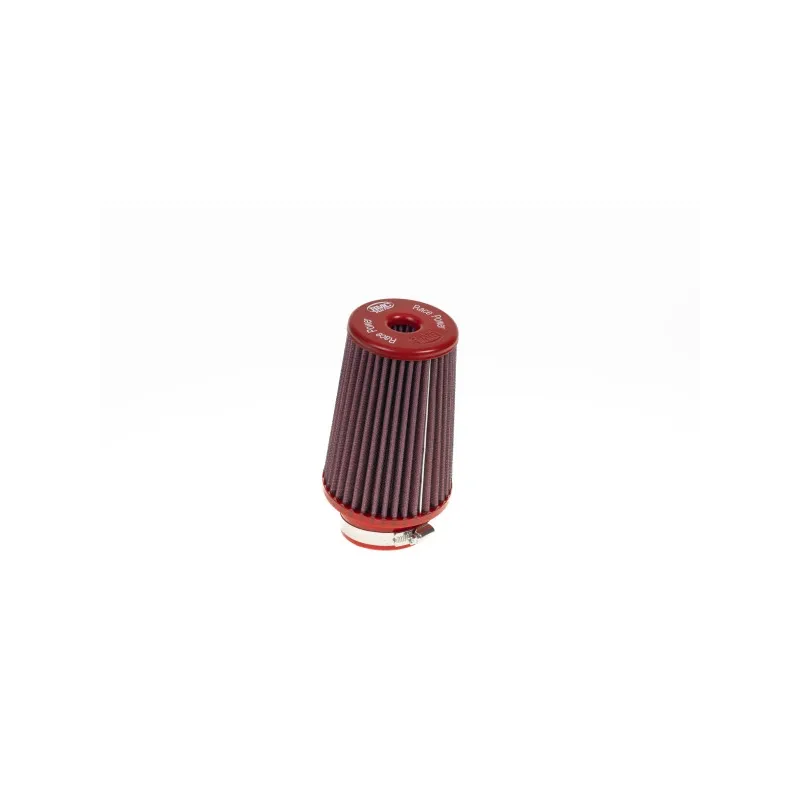

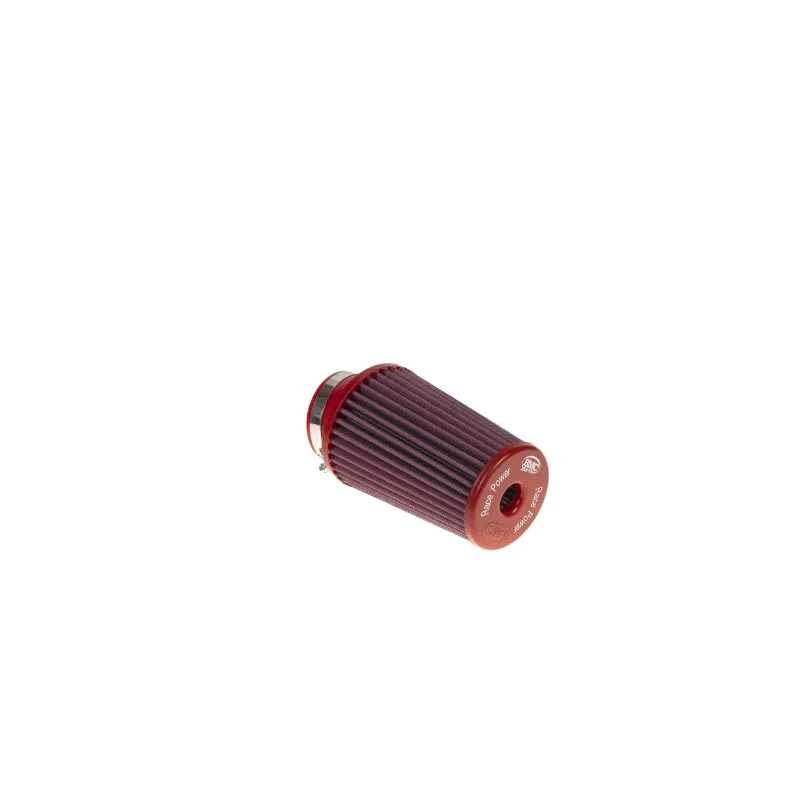

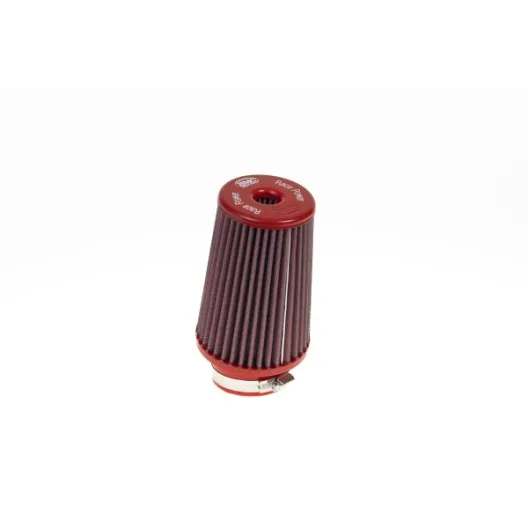

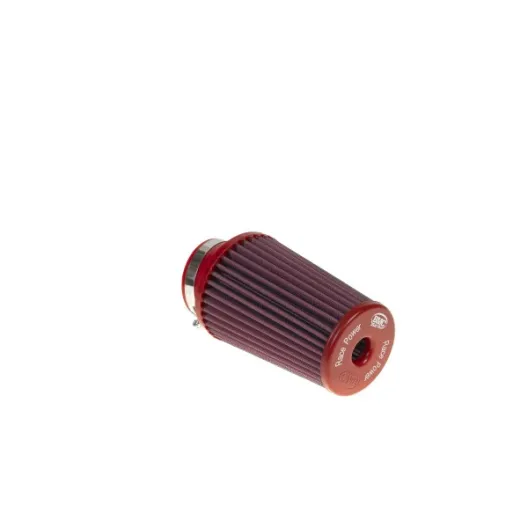

BMC universal 70 mm Twin Air conical sports air filter for direct intake

Technical features
Twin Air
Number of Flanges
1
Flange Length (mm)
45
Flange Inner Diameter Ø1 (mm)
70
Base Outer Diameter Ø2 (mm)
106
Height - H2 (mm)
197
Height - H1 (mm)
152
Top Outer Diameter Ø3 (mm)
84
Top Material/Finish
Metal

General Info
(active tab)
Product Box Info

Filter Material
Oiled cotton gauze
Flange Type
Angled
Top Shape
Twin Air
Flange Angle
12 degrees
Washable
Yes
Warranty
2-year limited
EAN
8032872865618

BMC conical air filters for direct intake can be installed on any type of vehicle, replacing the original airbox. These BMC conical air filters are crafted using a signature red rubber, which ensures the intake neck is highly resistant to both mechanical stress and thermal exposure, preventing any temperature-induced deformation. The specialized mesh used in the filter element allows for the construction of air filters capable of supporting applications with power outputs of up to 700 hp, without any risk of the filter deforming under suction.

BMC conical air filters are available in two versions:
• SA (Single Air): featuring a single lateral airflow;
• TW (Twin Air): featuring both lateral and central airflow, for an increased air supply.
