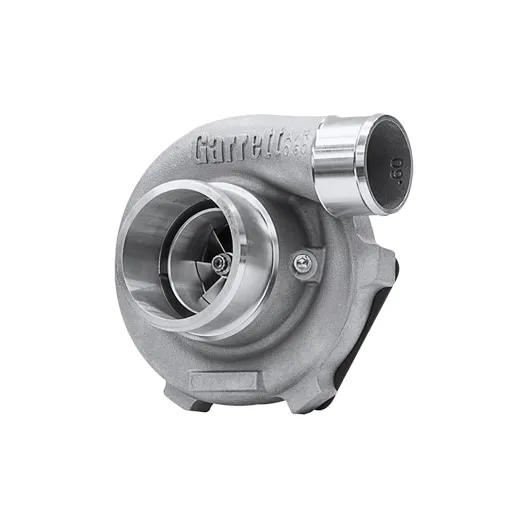

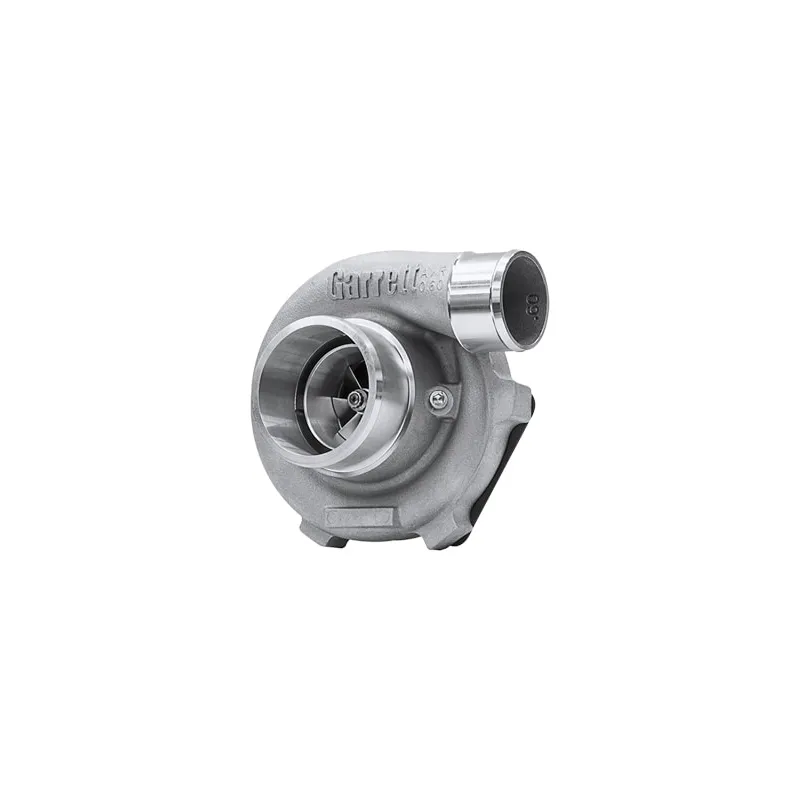

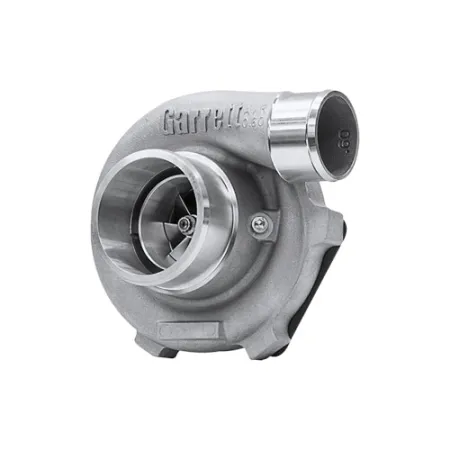

Turbina Garret 2860 t25 gen 2 ar 64
Preorder
849894-5002S
Turbina garrett GTX 2867R GEN.II con chiocciola Garrett V-Band A/R 0.57
Features
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 50mm TURBOCHARGER COMPRESSOR OPTION
- IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
- NEW FULLY MACHINED SPEED SENSOR PORT
WARNING: Maximum allowable turbocharger speed is 165krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

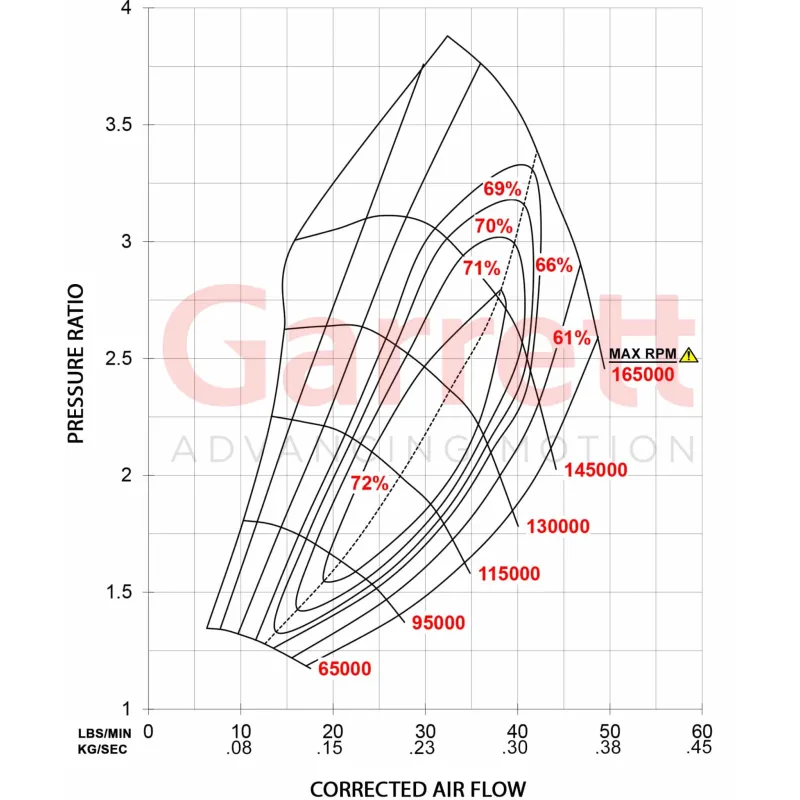

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
| Supercore PN | Rotation | Turbo Reference | Horsepower Rating | Comp Inducer | Comp Exducer | Turbine Inducer | Turbine Exducer |
|---|---|---|---|---|---|---|---|
| 849894-5002S | Standard Rot | 5047 | 550 | 50mm | 67mm | 54mm | 47mm |
| Turbine Kit PN | Rotation | A/R | Inlet | Outlet | Wastegate | Divided |
|---|---|---|---|---|---|---|
| 827690-0001 | Standard | 0.57 | V-Band | V-Band | Free Float | N |
| 827690-0002 | Standard | 0.72 | V-Band | V-Band | Free Float | N |
| 827690-0003 | Standard | 0.64 | T25 | 5 bolt | Internal | N |
| 827690-0004 | Standard | 0.86 | T25 | 5 bolt | Internal | N |
