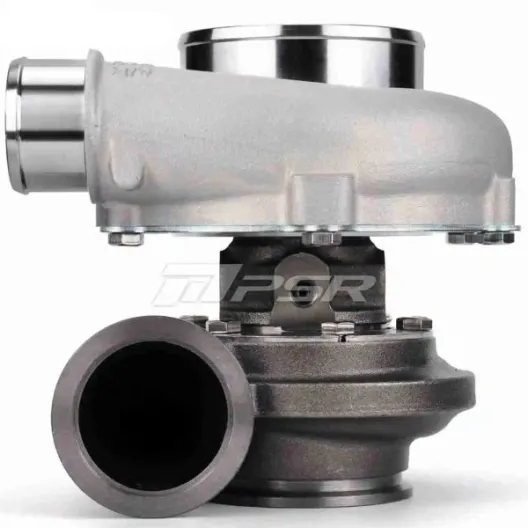

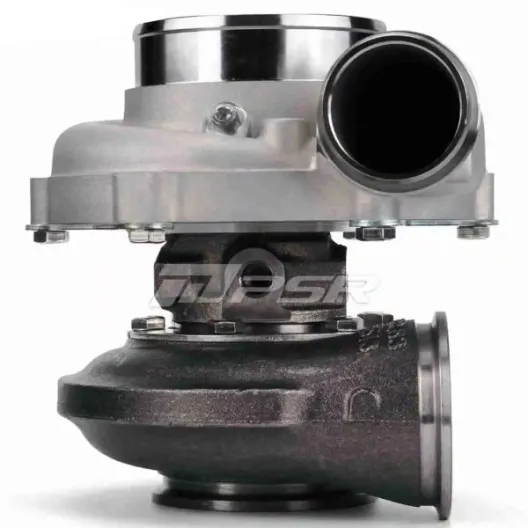

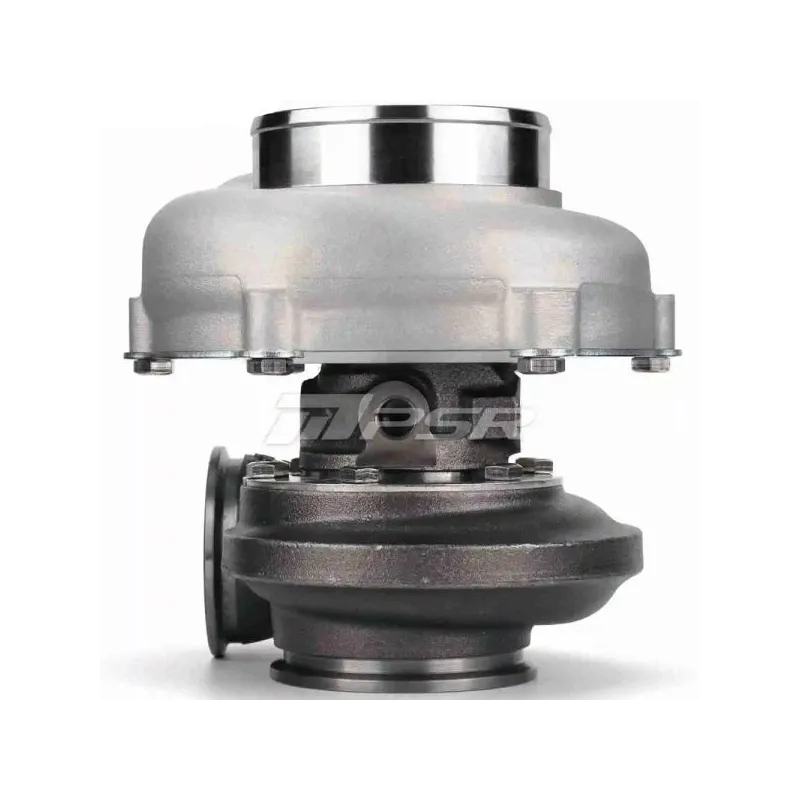

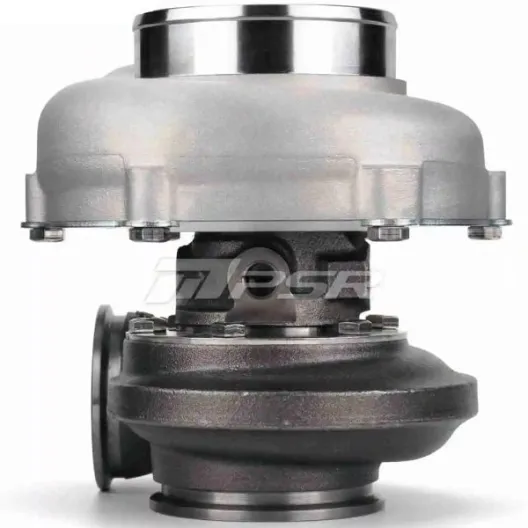

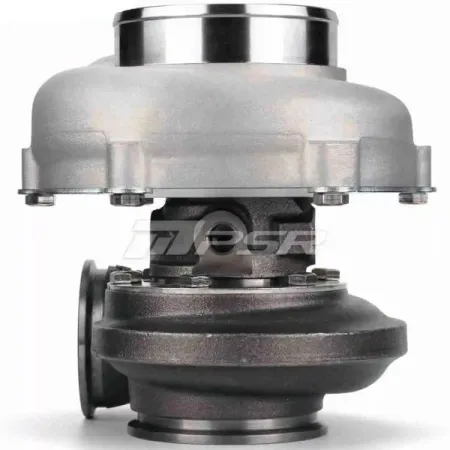

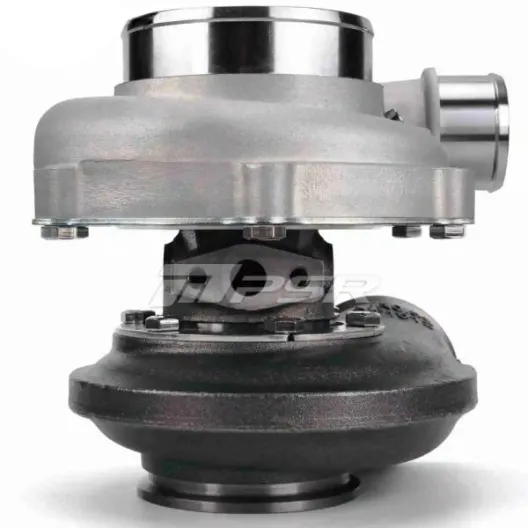

Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
  • New
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119
Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119

Pulsar Turbo Systems 3071 GEN2 650HP Dual Ball Bearing Turbo - Standard - .83 Dual V-Band - 102130119

Preorder
102130119
€879.00 VAT included

Product description

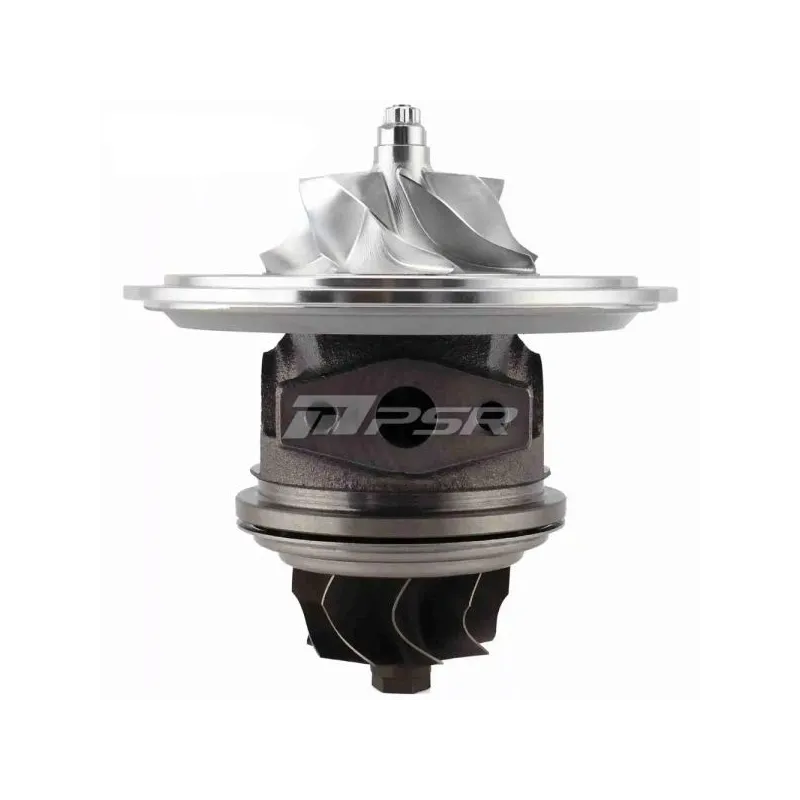

  • Dual Ceramic Ball Bearing System
  • 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c 10 Blade Turbine Wheel

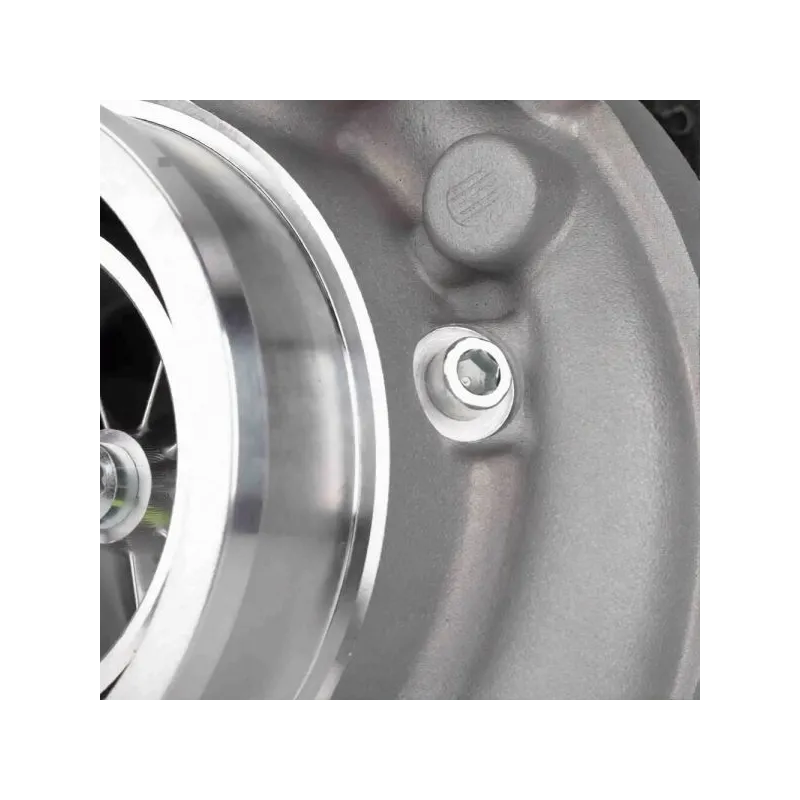

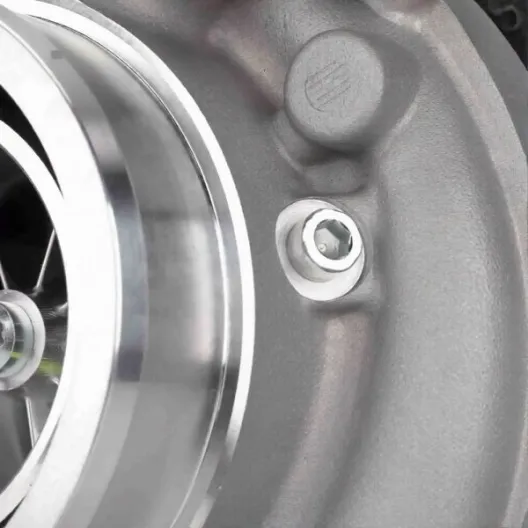

  • Gen2 Cover Integrated with the Speed Sensor Port
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~60 lb/min, rated @ 650 FWHP

    Description

  • Compressor Housing: Standard

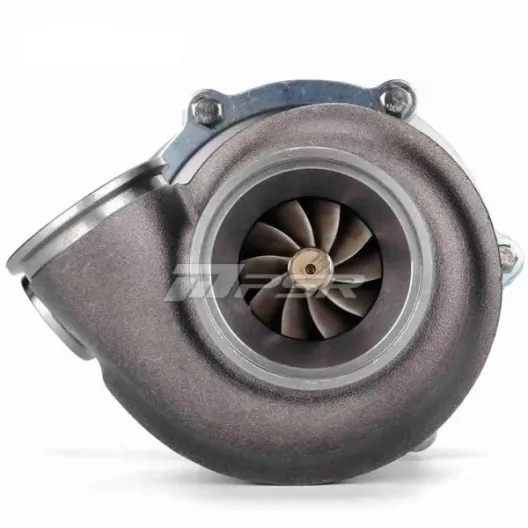

  • Compressor Wheel: 54x71mm
  • Turbine Wheel: 60x55mm
  • Compressor Inlet: 4inch Hose

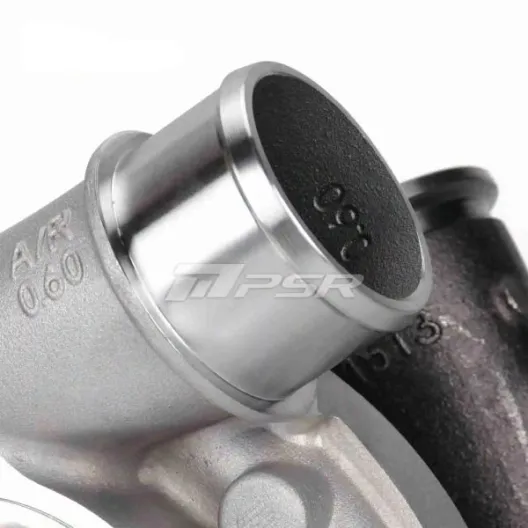

  • Compressor Outlet: 2inch Hose
  • A/R (Area over Radius): 0.83

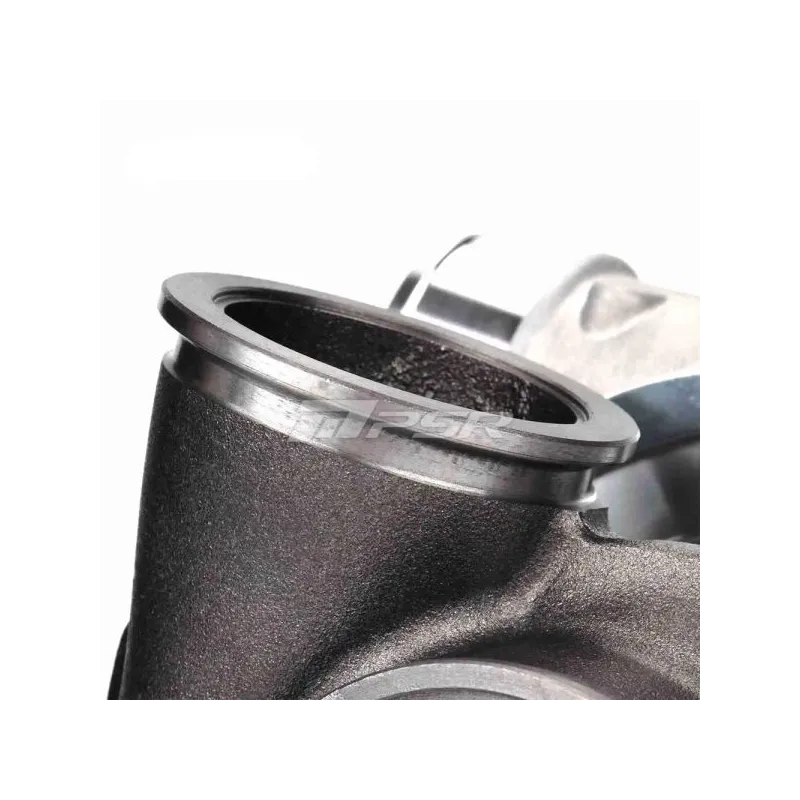

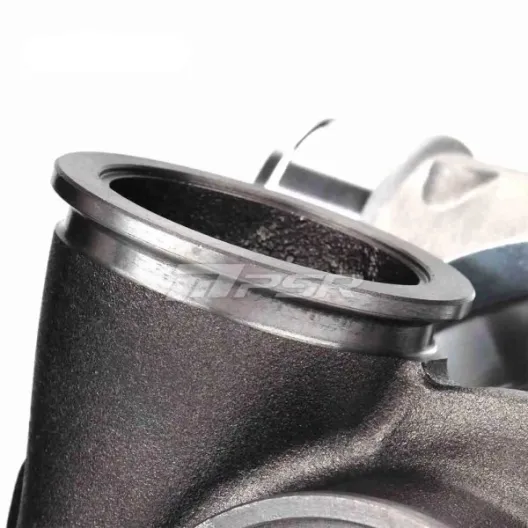

  • Turbine Inlet: 2.5inch V-Band
  • Turbine Outlet: 3inch V-Band (3.55inch Outer Diameter)
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14x1.5
  • We highly recommended running water cooling for better durability
