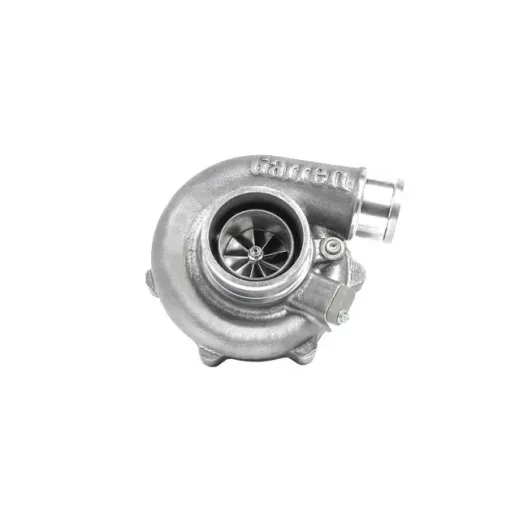

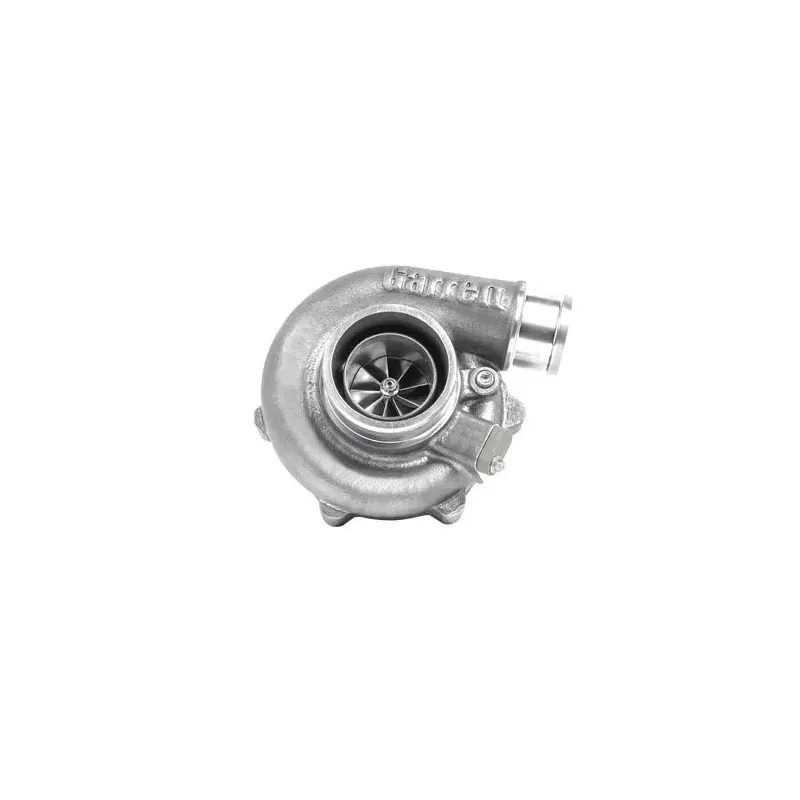

GARRETT G25-550 TURBOCHARGER 0.49 A/R WG (877895-5001S)

PRODUCT INFORMATION:

• Horsepower: 300-550 HP

• Displacement: 1.4 - 3.0 L

• T25 Inlet - V-Band Outlet - Single Scroll - A/R 0.49

• Latest CFD-optimized, forged milled compressor wheel

• High-Flow compressor housing with integrated easy plug speed sensor port

• Rotation: Standard (Clockwise)

• Dual ceramic ball bearing cartridges

• Includes -4AN oil restrictor fitting with 1mm orifice

• Four large water jacket ports

• Twin-piston rings at compressor and turbine site

• MAR-M 1050° turbine wheel

• 1050° Stainless Steel turbine housing

• Water -and Oil cooled

• Delivery: Turbocharger, 1.0bar Actuator, 2 x -6AN water fittings and two plugs, 1 x oil restrictor -4AN
