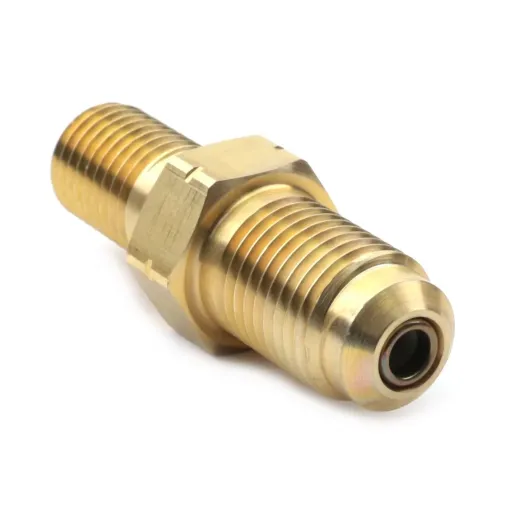

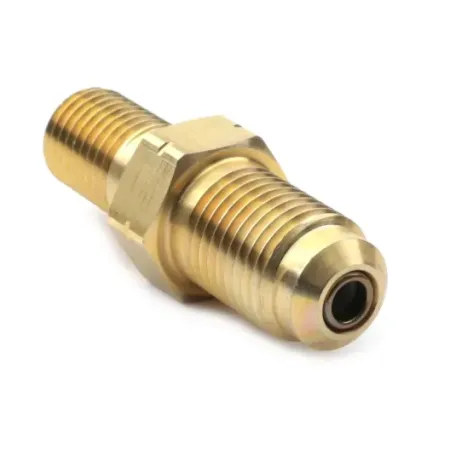

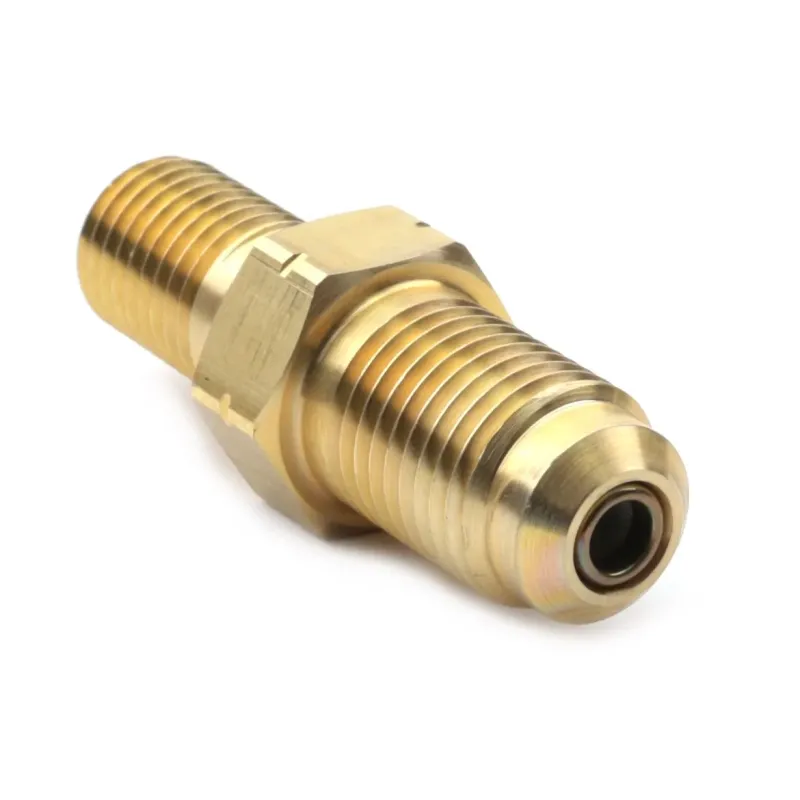

Bar-Tek RS4 upgrade relief valve VAG 2.0 TFSI EA113

Upgrade Fuel system Relief Valve for the 2.0L TFSI engines running more than 300hp.

The fuel system for the 2.0 TFSI separated in two systems:
The low pressure system (3 to 5bar) is feeding the high pressure system (50 to 130bar).
2.0L TFSI engines that are running more than 300hp need to change the high pressure fuel pump together with this upgrade valve. Otherwise under full throttle the engine can run too lean. Too lean running may result in engine failure!

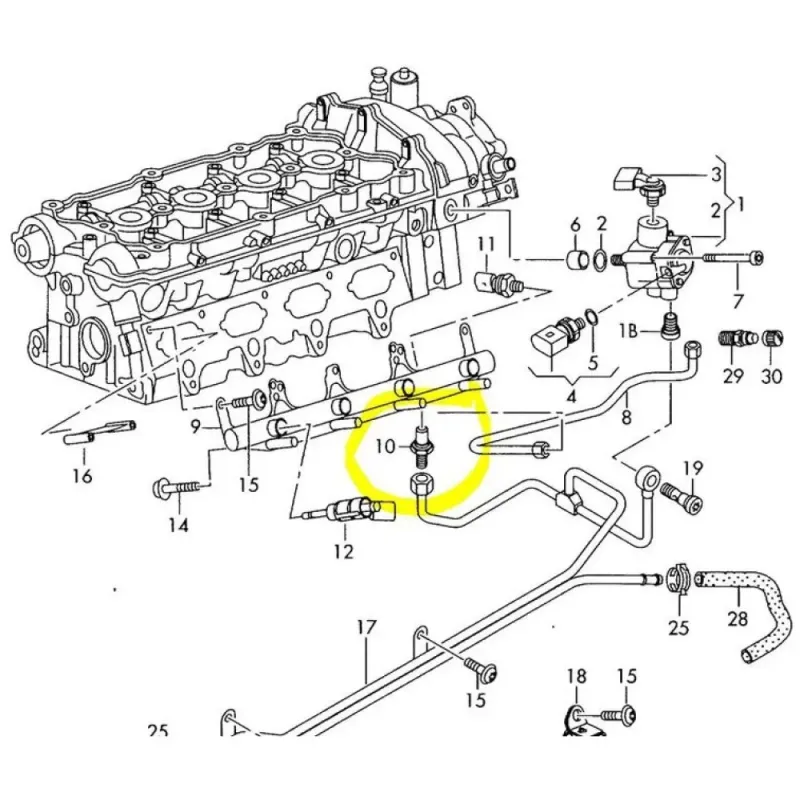

This valve is a "bridge" between the low and high pressure.

APPLICATION:

• Audi A1 / S1 8X | BJ 2010-2018 2.0L TFSI (EA113) CDLH | 256 PS
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) AXX | 200 PS
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) BHZ | 265 PS
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) BPY | 200 PS
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) BWA | 200 PS
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) CDLA | 265 PS
• Audi A4 / S4 / RS4 B7 (Typ 8E) | BJ 2004-2008 2.0L TFSI (EA113) BGB | 200 PS
• Audi A4 / S4 / RS4 B7 (Typ 8E) | BJ 2004-2008 2.0L TFSI (EA113) BWE | 200 PS
• Audi A6 / S6 / RS6 C6 | BJ 2004-2011 2.0L TFSI (EA113) BPJ | 170 PS
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA113) BPY | 200 PS
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA113) BWA | 200 PS
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA113) CDLB | 272 PS
• Seat Altea I | BJ 2004-2015 2.0L TFSI (EA113) BWA | 200 PS
• Seat Exeo I (Typ 3R) | BJ 2008-2013 2.0L TFSI (EA113) BWE | 200 PS
• Seat Leon II (Typ 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWA | 185 PS
• Seat Leon II (Typ 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWA | 200 PS
• Seat Leon II (Typ 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWJ | 240 PS
• Seat Leon II (Typ 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWJ | 310 PS
• Seat Leon II (Typ 1P) | BJ 2005-2012 2.0L TFSI (EA113) CDLA | 310 PS
• Seat Leon II (Typ 1P) | BJ 2005-2012 2.0L TFSI (EA113) CDLD | 240 PS
• Seat Toledo III (Typ 5P) | BJ 2004-2009 2.0L TSI (EA113) BWA | 200 PS
• VW Eos 1F | BJ 2006-2015 2.0L TFSI (EA113) BWA | 200 PS
• VW Golf V | BJ 2003-2008 2.0L TFSI (EA113) 240 PS
• VW Golf V | BJ 2003-2008 2.0L TFSI (EA113) AXX | 200 PS
• VW Golf V | BJ 2003-2008 2.0L TFSI (EA113) BPY | 200 PS
• VW Golf V | BJ 2003-2008 2.0L TFSI (EA113) BWA | 200 PS
• VW Golf V | BJ 2003-2008 2.0L TFSI (EA113) BYD | 230 PS
• VW Golf V | BJ 2003-2008 2.0L TFSI (EA113) CAWB | 200 PS
• VW Golf VI | BJ 2008-2012 2.0L TFSI (EA113) CDLF | 270 PS
• VW Golf VI | BJ 2008-2012 2.0L TFSI (EA113) CDLG | 235 PS
• VW Jetta V | BJ 2005-2010 2.0 TSI (EA113) BWA | 200 PS
• VW Jetta V | BJ 2005-2010 2.0 TSI (EA113) CAWB | 200 PS
• VW Passat B6 (3C) | BJ 2005-2010 2.0L TFSI (EA113) AXX | 200 PS
• VW Passat B6 (3C) | BJ 2005-2010 2.0L TFSI (EA113) BWA | 200 PS
• VW Polo V (Typ 6R) | BJ 2009-2014 2.0 WRC (EA113) CDLJ | 220 PS
• VW Scirocco III (Typ 13) | BJ 2008-2017 2.0L TSI (EA113) CDLA | 265 PS
• VW Scirocco III (Typ 13) | BJ 2008-2017 2.0L TSI (EA113) CDLK | 280 PS
• Škoda Octavia II (Typ 1Z) | BJ 2004-2013 2.0L TFSI (EA113) BWA | 200 PS
